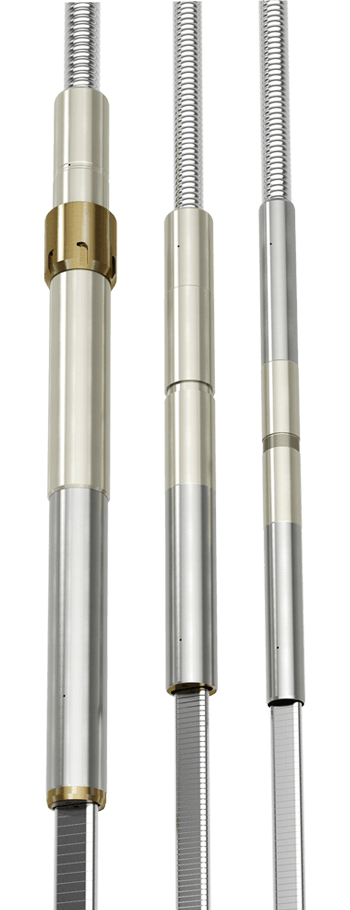

Packer Penetrators and Feedthru Systems can be manufactured for every packer configuration – Single Mandrel, Split-Phase and STEALTH for small bore options.

Single Mandrel Packer Penetrators are one-piece products which transmit power through a single bore. They can accommodate a vast array of cable types and sizes, and are supplied factory-moulded to downhole cable (including the MLE if required) or via a Field Attachable connection. A variety of universal thread types, offset adapters and also the option of the STEALTH version in a 1.5” bore size,ensure configurations to suit every completion.

These single-piece products transmit power through a single bore. They can accommodate a vast array of cable types and sizes, and are supplied factory-moulded to downhole cable (including the MLE if required) or with a Field Attachable connection.

Power ratings range from 140 amps/5 kVAC through to 250 amps/8 kVAC, with single-phase instrument feedthroughs also available. Most penetrators are fitted to the packer by way of an adapter. To accommodate for an excess or shortfall in MLE length, adapters can be supplied to allow from 3.5” to 24” of adjustment to penetrator positioning. A variety of universal thread types and offset adapters ensure a configuration to suit every completion.
