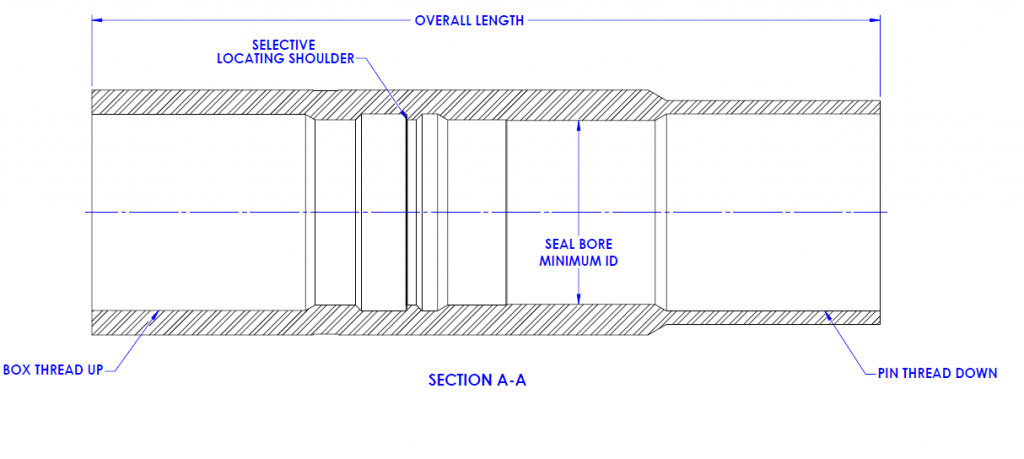

Smart Completions Model “ GX” Landing Nipples are comparable to Halliburton’s X® Landing Nipples; they are fully selective nipples, used to land, lock, and seal comparable Halliburton’s X® Locking mandrels with attached flow control devise in the production tubing string. The internal profile of GX Landing Nipples includes a selective profile, a locking recess, and a polished bore. When installed, the locking dogs in the X® lock move out into the recess of the nipple, anchoring the lock and positioning the lock packing in the polished seal bore section of the nipple. Model GX Landing
Nipples are made from either low alloy steel, 9Cr 1Mo Steel, or premium metallurgies if required for the service environment.

The Model GX Landing Nipple is a selective Landing Nipple, generally used as the upper nipple or as stacked nipples in a completion. It is fully selective, and any number of GX Landing Nipples may be run in the completion string. The X® running tool will locate and lock the attached X® Locking Mandrel with appropriate flow control device in the nipple of choice. The GX Landing Nipple is compatible with flow control equipment designed to be attached to X® Locking Mandrels.

Application
• Single and dual completions.
Benefits
• Fully Selective design.
Features
• Polished Seal Bore.
• Metallurgy compatible with service environment.
• Thread connection choices to match tubing.
• Available with all API and most premium thread connections.
