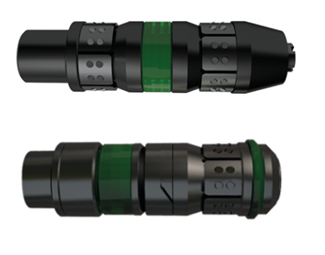

Smart Completions drillable bridge and flow-through frac plug is a well plugging device most commonly used to isolate zones during multistage stimulation. The bridge plug has a solid core that allows it to hold pressure from both directions.
This plug has a one-way, internal check valve that allows free flow of fluids from below the plug after stimulation. Copperhead plugs are designed to withstand pressures to 10,000 psi [68,945 kPa] and temperatures to 350 degF [177 degC].
The plug components are designed to drill out quickly into small, consistently sized cuttings that can be circulated out of the well. This drillable bridge plug can be set using wireline, coiled tubing, or threaded tubing.
